In the fast-evolving world of industrial and commercial security, the Somfy rolling shutter motor stands as the gold standard for performance and durability. Whether you are securing a retail storefront or a massive industrial warehouse in Egypt, selecting the right automation system is crucial. At Grand Gate Eg, we are proud to be your trusted partner and exclusive agent, offering the complete range of Somfy central motors designed specifically for spring-loaded metal curtains and rolling grilles.
Contact Grand Gate Eg today to get the original Somfy rolling shutter motor and secure your property with the world’s leading technology!

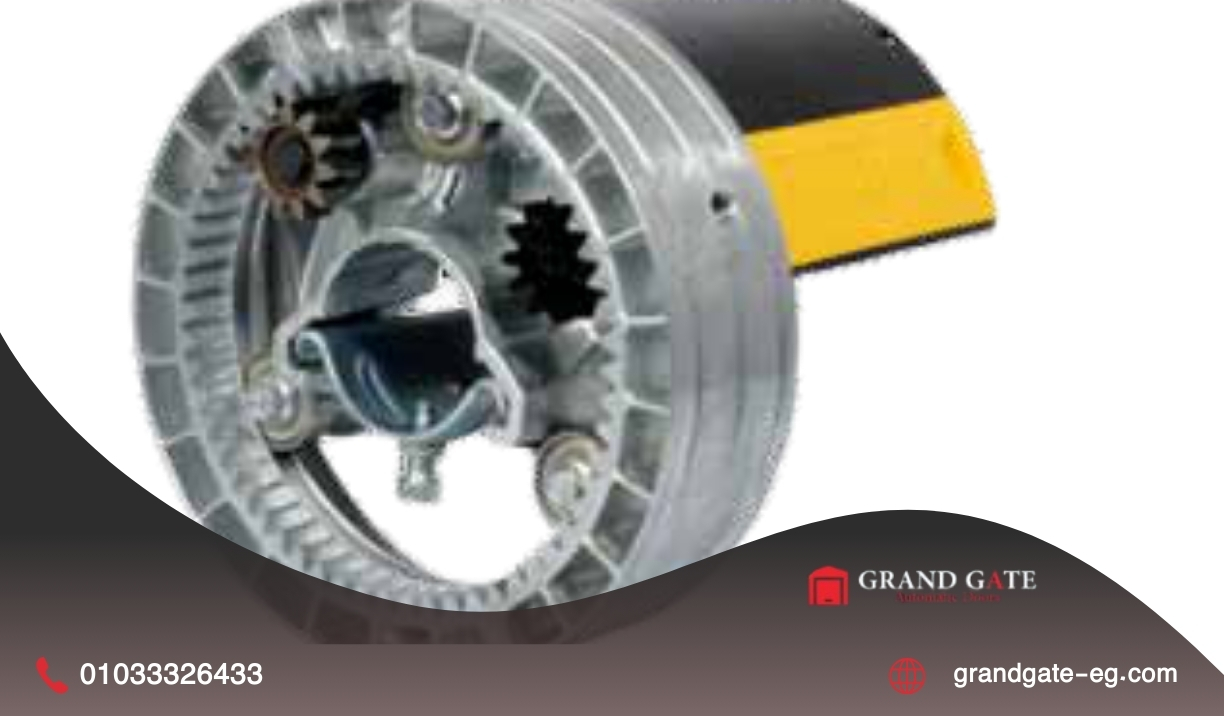

What is a Somfy Centreo rolling shutter motor for metal curtains and rolling grilles?
The Centreo range by Somfy is a specialized series of central motors designed for high-performance automation of metal shutters. These motors are engineered to work seamlessly with spring box systems. When choosing the perfect Somfy rolling shutter motor, Grand Gate Eg experts focus on three critical technical factors:
- Total Fabric Weight: Ensuring the motor can handle the curtain’s mass.
- Tube Diameter: Compatibility with Ø60 mm or Ø76 mm shafts.
- Spring Box Diameter: Optimized for Ø200, Ø220, or Ø240 mm boxes.
Difference between Somfy Centreo wired motors and Somfy Centreo RTS motors
Grand Gate Eg provides two distinct categories of the Somfy rolling shutter motor to meet different operational needs:
- Centreo Wired Motors: These use a traditional physical connection to a wall switch. They are known for their extreme reliability and simple “plug and play” mechanical nature.
- Centreo RTS Motors: These feature Radio Technology Somfy, allowing for wireless control. The RTS version offers advanced features like remote limit setting and intermediate position memory.
Maximum lifting capacity of Somfy rolling shutter motors
The lifting power of a Somfy rolling shutter motor is extensive, catering to various industrial scales. Based on the technical specifications provided by Grand Gate Eg:
- Centreo 1: Lifts up to 200 kg.
- Centreo 2: Lifts up to 250 kg.
- Centreo 3: Lifts up to 270 kg.
- Centreo 4: The heavy-duty giant, capable of lifting up to 385 kg.
- SASO Models: Specialized versions for specific torque and speed requirements (up to 380 kg).
Supported tube diameters for Somfy Centreo rolling shutter motors
Versatility is a core feature of the Somfy rolling shutter motor. While the standard support is for Ø60 mm and Ø76 mm tubes, Grand Gate Eg offers specialized adapter kits that allow these motors to operate on smaller diameters:
- Adapter for Ø34 mm tubes.
- Adapter for Ø42 mm tubes.
- Adapter for Ø48 mm tubes.
Crown sizes and spring box compatibility for Somfy rolling shutter motors
To ensure a perfect mechanical fit, the Somfy rolling shutter motor is available with different wheel (crown) diameters. Grand Gate Eg stocks models compatible with:
- Ø200 mm Crown: Standard for many commercial shops.
- Ø220 mm Crown: Ideal for medium-sized industrial doors.
- Ø240 mm Crown: Designed for the largest spring boxes and heavy-duty curtains.
Brake and declutching system in Somfy rolling shutter motors
Safety and manual control are integrated into every Somfy rolling shutter motor:
- Integrated Brake: Ensures immediate stopping and prevents the curtain from falling.
- Manual Declutching: Every model (except specific non-brake versions) features a manual override.
- Reducer Interaction: The declutching system acts directly on the gear reducer for smooth manual operation during power failures.
End-limit adjustment systems in Somfy rolling shutter motors
Precision control is what sets the Somfy rolling shutter motor apart:
- Wired Models: Utilize a semi-automatic system with memory rings for reliable limit stopping.
- RTS Models: Feature a fully electronic system where limits are adjusted directly via the remote transmitter, offering 20-turn capacity.
Wired and radio control types for Somfy rolling shutter motors
Grand Gate Eg offers diverse control architectures:
- Wired Control: Uses 230V standard switches or key-operated selectors for physical security.
- RTS Radio Control: Operates on the 433.42 MHz frequency with a range of up to 200m in open air and 20m through concrete walls.
Upgrade your facility now with Grand Gate Eg. Call us to install the latest Somfy rolling shutter motor with a rolling code encryption for maximum security!
Integrated Somfy RTS radio receiver inside the motor
The RTS version of the Somfy rolling shutter motor is a marvel of integration. The radio receiver is built directly into the motor housing. This eliminates the need for external control boxes, simplifies wiring, and allows for the management of up to 20 different control channels.
Security and protection features of Somfy rolling shutter motors
When you choose a Somfy rolling shutter motor from Grand Gate Eg, you get:
- Rolling Code Technology: Prevents signal hacking or copying.
- Internal Brake: Keeps the shutter locked when closed.
- Thermal Protection: Automatic cut-out after 4 minutes of continuous use to prevent overheating.
- IPX4 Protection: Resistance to water splashes and dust.
Intermediate position memorisation in Somfy Centreo RTS motors
The “My” position feature allows the Somfy rolling shutter motor to remember a favorite intermediate height. This is perfect for partial ventilation or displaying products in a shop window while keeping the main entrance secured.
Compatibility with Reflex photocells and interface card for Centreo RTS motors
For added safety, the Somfy rolling shutter motor can be integrated with Reflex photocells. Grand Gate Eg provides the specific Interface Card (Ref. 9018567), which allows the motor to stop instantly if the infrared beam is interrupted, protecting people and vehicles.
Recommended number of operating cycles per day
To maintain the peak performance of your Somfy rolling shutter motor, it is recommended to stay within 10 non-consecutive cycles per day. This ensures the mechanical components and the thermal protection system remain in optimal condition for a long lifespan.
Thermal protection and operating temperature of Somfy rolling shutter motors
The Somfy rolling shutter motor is built for tough environments:
- Operating Temp: -10°C to +40°C (up to +60°C in specific conditions).
- Duty Cycle: 4 minutes of continuous runtime before the thermal protector activates.
Ingress protection rating (IP) of Somfy rolling shutter motors
The IPX4 rating ensures that your Somfy rolling shutter motor is protected against the elements. Whether it’s humidity or accidental water exposure, the motor’s internal electronics remain shielded.
Power supply and cable specifications of Somfy rolling shutter motors
Grand Gate Eg ensures standard electrical compatibility:
- Power Supply: 230V – 50 Hz.
- Cables: Comes with a 4-meter white power cable and a 6-meter declutching cable for manual override.
Original accessories for Somfy Centreo and Centreo RTS motors
At Grand Gate Eg, we provide the full suite of genuine accessories for your Somfy rolling shutter motor:
- Key Switches: Ref. 2006014 (with manual override).
- Reversing Switches: Ref. 2004681.
- Security Boxes: Ref. 9011411 (External manual override box).
- Declutching Kits: Available in standard handles (Ref. 9017271) or hex handles (Ref. 9013927).
- Crown Adapters: Kits to convert from Ø200 to Ø220 or Ø220 to Ø240 (Ref. 9016731).
Typical applications of Somfy rolling shutter motors
The Somfy rolling shutter motor is the ideal choice for:
- Commercial shop fronts and malls.
- Warehouse rolling gates.
- Industrial grilles and metal curtains.
- Any high-security entrance requiring the reliability of a central motor system.
When to choose Somfy Centreo motors for heavy-duty and industrial projects
Choose the Somfy rolling shutter motor when your project demands durability and precision. With weight capacities reaching up to 385 kg and the backing of Grand Gate Eg’s technical expertise, these motors are perfect for heavy industrial doors that require constant, reliable operation.
Somfy rolling shutter motor installation in Egypt
Installation by the exclusive agent, Grand Gate Eg, ensures that your Somfy rolling shutter motor is calibrated correctly. We calculate the torque, set the limit rings, and ensure the manual override is accessible and functional, following the exact 230V/50Hz specifications.
Maintenance and service for Somfy rolling shutter motors
Grand Gate Eg offers comprehensive maintenance for the Somfy rolling shutter motor. Regular checks of the brake system, lubricating the spring box interface, and testing the RTS signal strength will extend the life of your automation system significantly.
Frequently asked questions about Somfy rolling shutter motors
-
What is the maximum weight supported?
Up to 385 kg for the Centreo 4 model.
-
Is the motor weather-resistant?
Yes, it features an IPX4 protection rating.
-
Can I control it with a remote?
Yes, using the Centreo RTS models and Situo/Keygo transmitters.
-
What if the power fails?
All motors installed by Grand Gate Eg include a manual declutching system.
The Somfy rolling shutter motor is more than just a motor; it is a complete security solution for your business. By choosing Grand Gate Eg, you are guaranteed genuine products, expert installation, and factory-backed support. Protect your assets with the best central motor technology in the world.
Don’t wait! Contact Grand Gate Eg, the exclusive agent for Somfy in Egypt, and get your Somfy rolling shutter motor today!
Call us now at: 01033326433 Grand Gate Eg – Security, Automation, Excellence.
